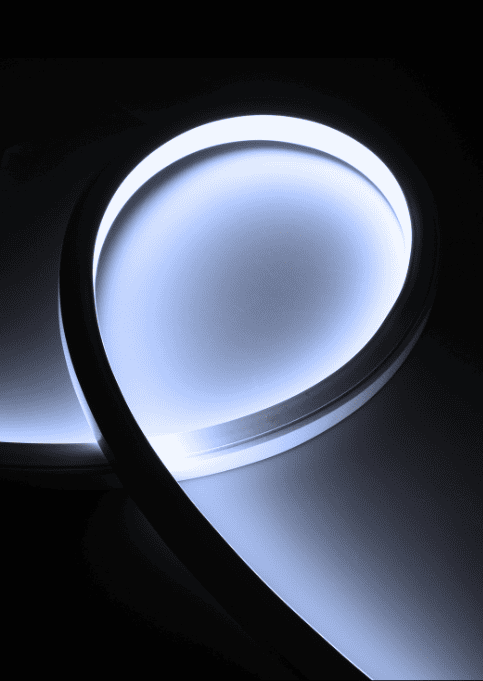

Pool & Underwater Series
Features
Key Features
IP68 Waterproof Protection
Aqua is designed for underwater use with IP68-rated waterproofing, allowing it to function reliably at depths of up to 3 meters [9.84ft.]. This ensures consistent performance in pools, fountains, and other aquatic settings
High-Quality Silicone Material
Aqua is crafted from premium silicone,
offering exceptional resistance to UV, yellowing,
heat, cold, and chemicals. This ensures reliable
and long-lasting performance in both fresh and saltwater environments.
Advanced Waterproofing Design
Aqua includes multiple waterproofing features like an ultra-thin PCBA coating, underwater-specific wiring with an anti-wicking ferrule, and secure hydraulic end caps, ensuring long-lasting durability in submerged conditions.
Durable IK08 Construction
Durable IK08 Construction
Aqua is built with IK08-rated impact resistance, featuring a compact and sturdy design that withstands physical stress. This makes it ideal for environments where durability is essential for long-term use

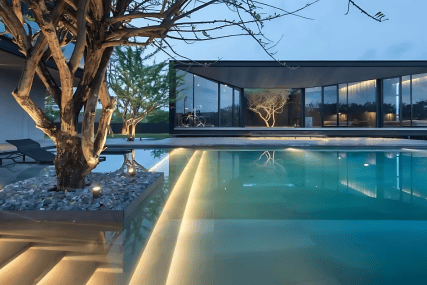

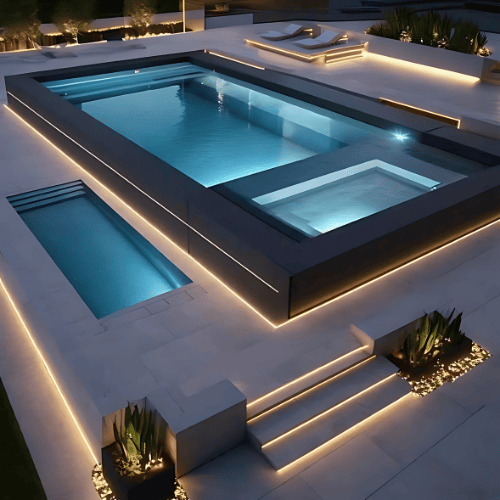

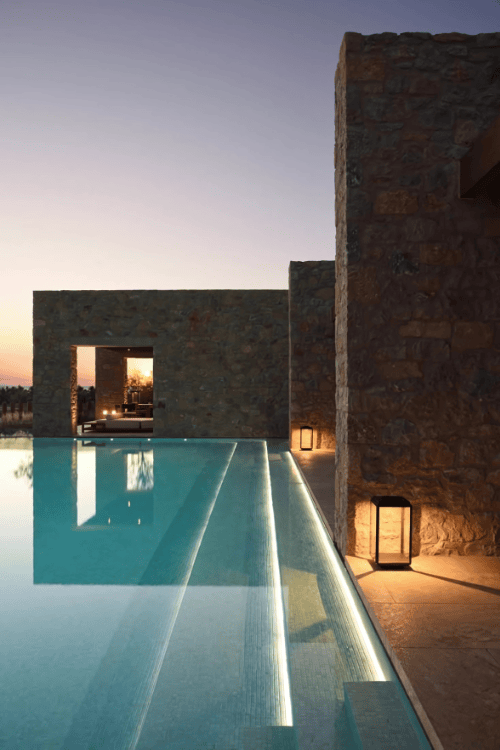

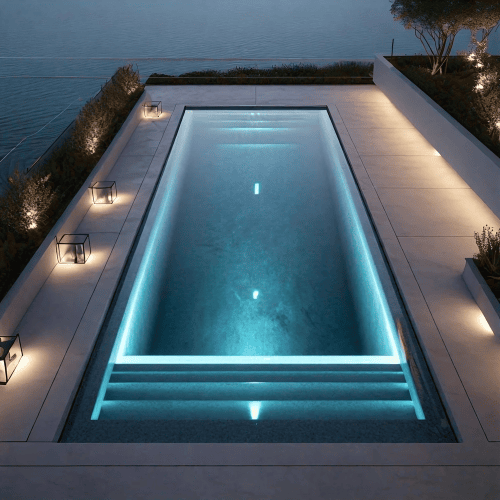

Gallery
Configurations
Bending Options
Bending

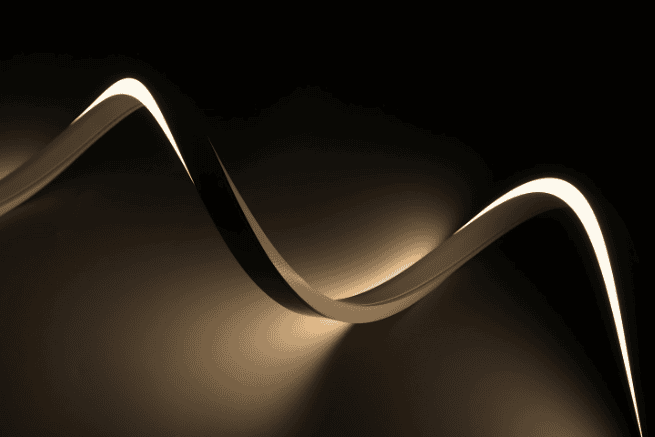

Side-Bend
Available in Rear, Side and Bottom Power Feed
Bending

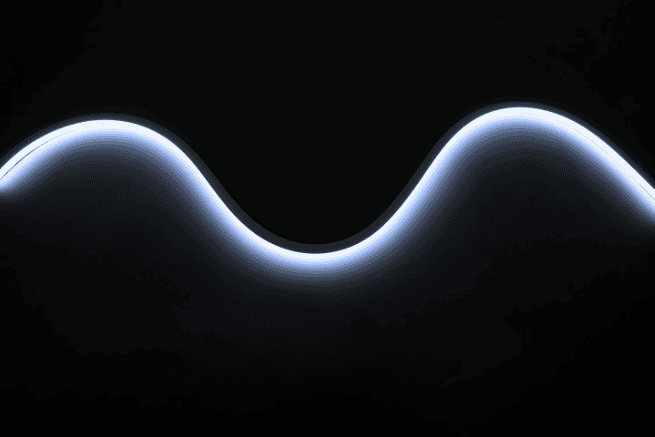

Top-Bend
Available in Rear, Side and Bottom Power Feed
Accessories
Mounting & Fixation

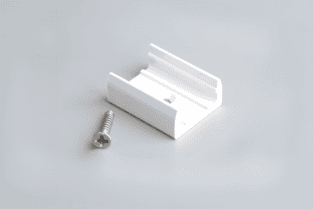

Bracket & Screw (Top-Bend)

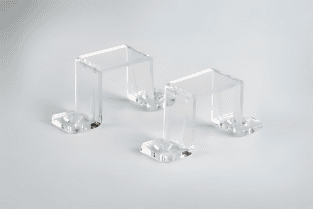

Clip & Screw (Top-Bend)
Bracked & Screw (Side-Bend)

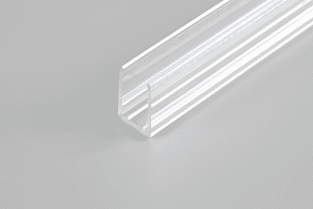

Linear PC Profile
Bendable Profile
Bendable Profile
Specifications
Technical Data
CCT - Color Temperature
2700K, 3000K, 35000K, 4000K, 5000K, 6500K
CRI - Color Rendering Index
>80CRI, >90CRI
Luminous Flux Density
Top-Bend - 250lm/ft
Side-Bend - 170lm/ft
Top-Bend - 250lm/ft
Beam Angle
120°
120°
Overal Dimension

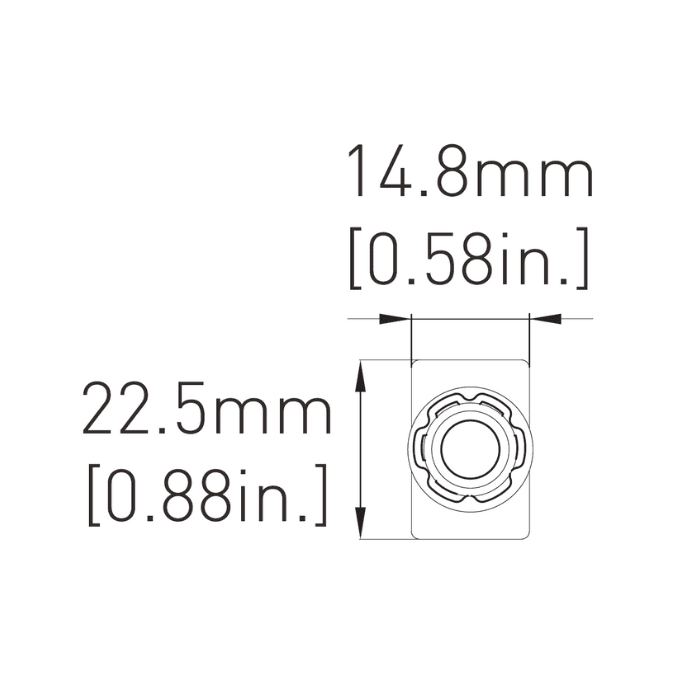

Side-Bend

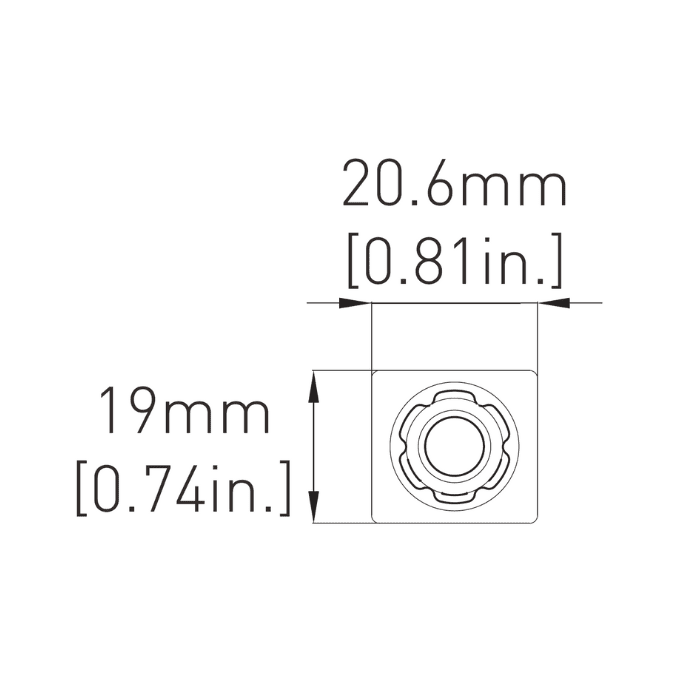

Top-Bend
Finish
Milky White
Installation
Multiple options - Refer to Accessories
Operating Voltage
24VDC
Dimming
PWM
PWM
Power
Top-Bend - 4.3W/ft (14W/M)
Side-Bend - 4.3W/ft (14W/M)
Top-Bend - 4.3W/ft (14W/M)
